• Product Description
    Company Info.
    <
    >
    <
    >
    Basic Info.
    Model:
    RXZJ-102T
    Types:
    Integrated flame detector
    Working power supply:
    220V
    Detection mode:
    Non-contact flame-away overfire detection
    Ambient temperature:
    -20℃~ 80℃ ℃
    Ambient humidity:
    100 %
    Size:
    cylindrical
    Scope of use:
    Gas, fuel oil
    Product Description

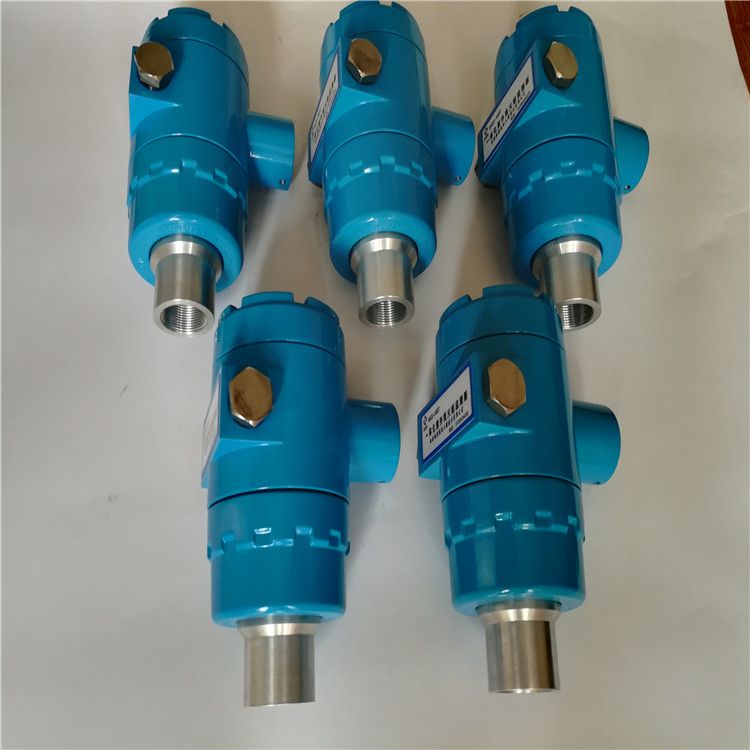

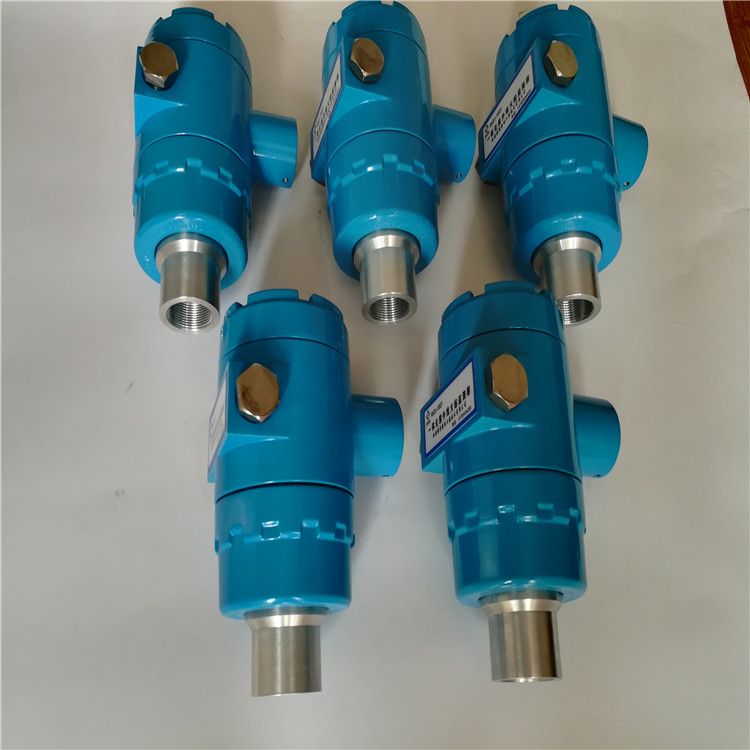

    Flame detector RXZJ-102T

    RXZJ-102Tintegrated ultraviolet flame monitor is used for flame monitoring of gas and fuel oil industrial burners. The monitor is only sensitive to ultraviolet rays generated, and has no reaction to lamp light and furnace high temperature radiation. It has strong anti-interference. This flame detector is explosion-proof flame detector, explosion-proof grade CT6,IP65.

    I.    Main technical parameters of ultraviolet flame monitoring device RXZJ-102T
    1. Power supply: 220V± 10% 50/60Hz
    2. Flame detection: UV sensor
    3. Operating temperature: -2 0℃~80℃
    4.. Detection response time:≤ 0.2 seconds
    5. Flameout valve closing time: 1-6 seconds adjustable
    6. Spectral response range: 190/280nm
    7. Signal output: a group of switching value, 4-20mA(optional)
    8. Protection class:   IP65
    9. Detection object: gas, fuel oil

    II.    Appearance and installation of ultraviolet flame monitoring device RXZJ-102T
    1. Shell: Cast aluminum explosion-proof type
    2. Mounting thread: M30X1.5.
    3. Inner diameter of test hole:φ 22, must be ventilated and cooled.

    III.    Wiring diagram and description of ultraviolet flame monitoring device RXZJ-102T:
           Open the rear cover and connect the connecting wire to the terminal strip


     1 for powerL

     2 for power supplyN

       3, 4 for active output, there is a fire output 220V fuel valve
       5 and 6 are passive normally open, and flip when there is flame
       6 and 7 are passive normally closed, and flip when there is flame

     8 is the standard current signal output positive pole

     9 is the standard current signal output cathode
