• Product Description
    Company Info.
    <
    >
    <
    >
    Basic Info.
    Model:
    RXZJ-102
    Types:
    Split flame detector
    Working power supply:
    220V
    Detection mode:
    Non-contact flame-away overfire detection
    Ambient temperature:
    -20-80 ℃
    Ambient humidity:
    80 %
    Size:
    155×90×55mm
    Scope of use:
    Flame for gas and oil industry burners
    Product Description

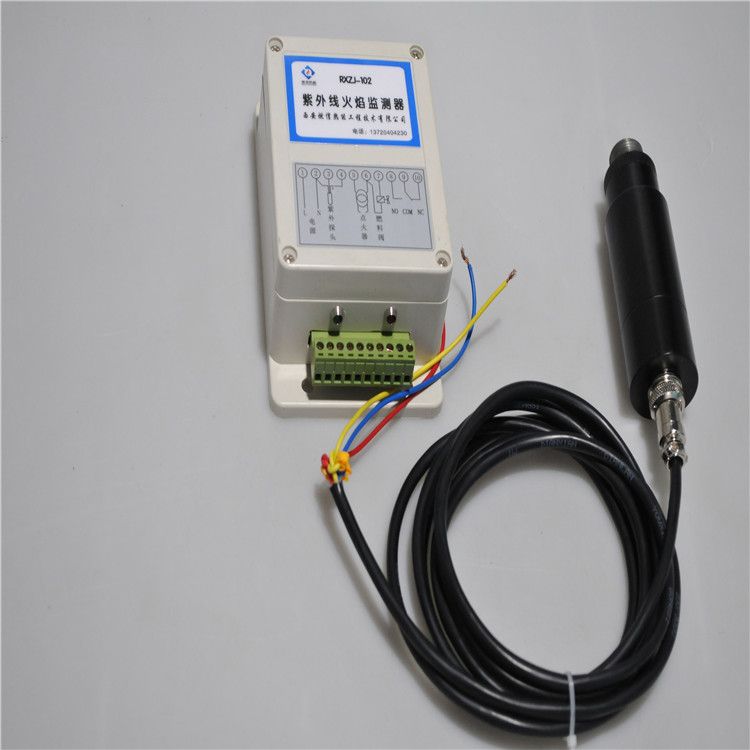

    RXZJ-102 Industrial Natural Gas Flame Detector

    RXZJ-102 UV flame monitoris used for flame monitoring of gas and oil industrial burners. The monitor is sensitive only to ultraviolet rays produced, and has no reaction to lamp light and furnace high temperature radiation. It has strong anti-interference.
    1. Natural gas flame detector function
      The ignition device can be controlled to ignite automatically, and the ignition automatically opens the fuel valve at the same time. Power on, power indicator (red) light, in the set time (6 seconds) does not ignite, the controller automatically closes the fuel valve; if ignition is successful, keep the fuel valve open, fuel supply normally. When monitoring flame, if flame is detected, the controller fire indicator (green) lights up, and keep the fuel valve open, fuel supply is normal; when no flame is detected, the controller fire indicator (green) goes out, and the fuel valve is automatically closed.
    II. Main technical parameters of natural gas flame detector
       1. Power Supply  220V±10%    50/60Hz
       2. Flame detection   UV sensors
       3. Detection response time ≤0.2seconds
       4. Spectral response range   190/280nm
       5. Sensor and controller connection  ≤ 20m
       6. Gas  and fuel oil
    Third, natural gas flame detector shell ABS engineering plastics
      1. Volume: 155× 90× 55mm
      2. Installation size: 135× 52mm  Installation hole 4-φ 5
      3. Probe mounting hole:φ 18, ventilation and cooling.

    RXZJ-102 UV flame detector wiring diagram:

    Xi'an combustion letter thermal flame detector selection parameter table:
