    Product Description

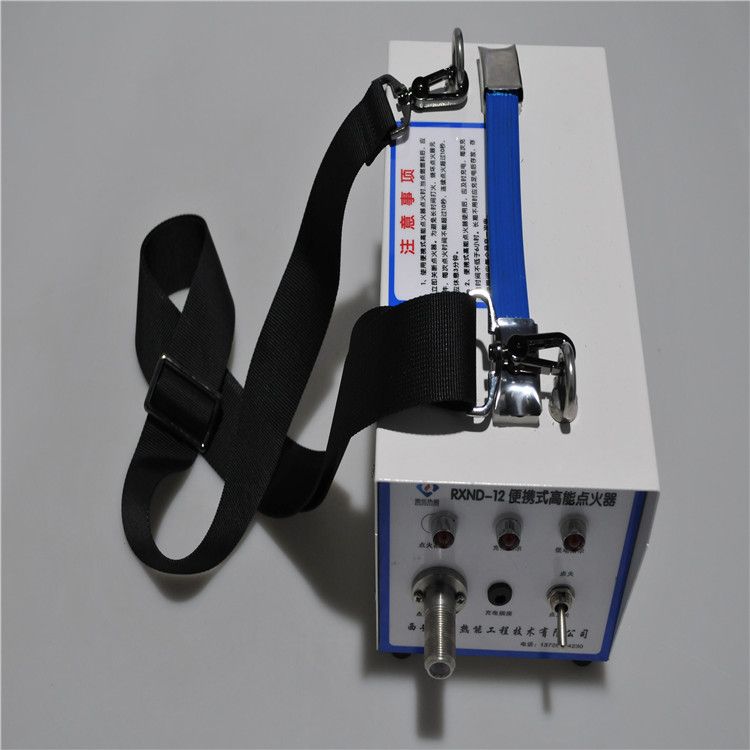

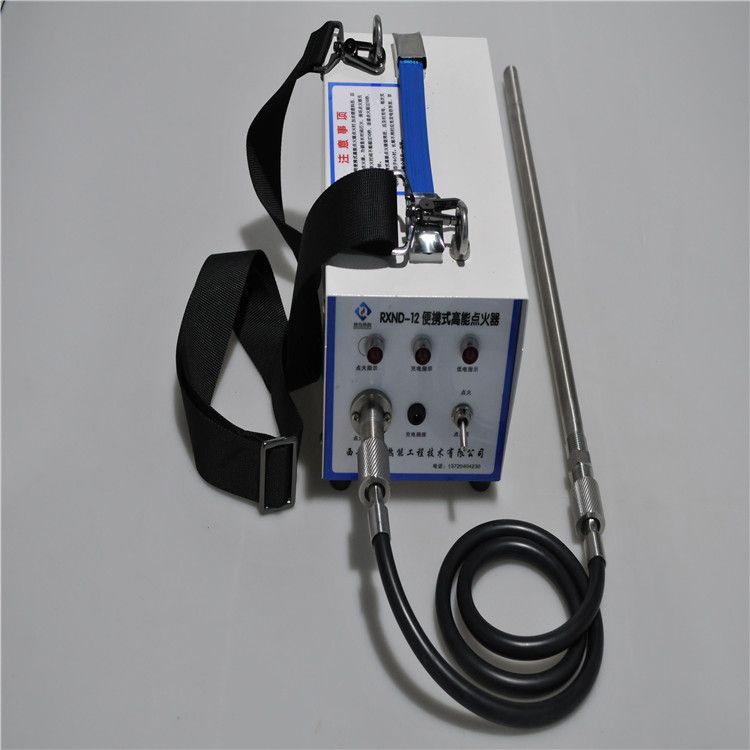

    Handheld boiler ignitor combustion letter heat RXND-12
    ​​​​​​
     The   portable high-energy igniter can be moved at any time. When it is used, the high-energy igniter can be moved to the place where it is used. After lighting, the high-energy igniter can be taken back. The rechargeable battery can be used inside without external power supply.
    A. Handheld boiler igniter​Product introduction:
    RXND-12portable high-energy igniterbelongs to rechargeable portable ignition device, does not need to increase power supply, and small size, ignition energy, long service life, easy to carry, high output ignition energy, ignition frequency and other characteristics, has been widely used in petroleum, chemical, metallurgy, glass, ceramics and other industries.
    II. Main technical parameters of handheld boiler igniter​:
     1. Battery: 12VDC 4.5Ah
     2.     Charging time:≥ 4h
       3.     Accumulated ignition duration (full battery):≥ 2h
      4. Ignition energy: 12J
     5. Spark discharge frequency 6 ~12 times/s
      6. Appearance size: 250mm× 140mm× 135mm
      7. Ignition cable: can be customized according to user requirements
      8. Ignition rod: the front end material of ignition rod is 2520 high temperature alloy, the instantaneous temperature resistance is 1300 ℃, and the outer diameter of conventional ignition rod is 1300 ℃.
    Φ16, special circumstances ignition rod diameter, length, connection mode, can be customized according to user requirements.

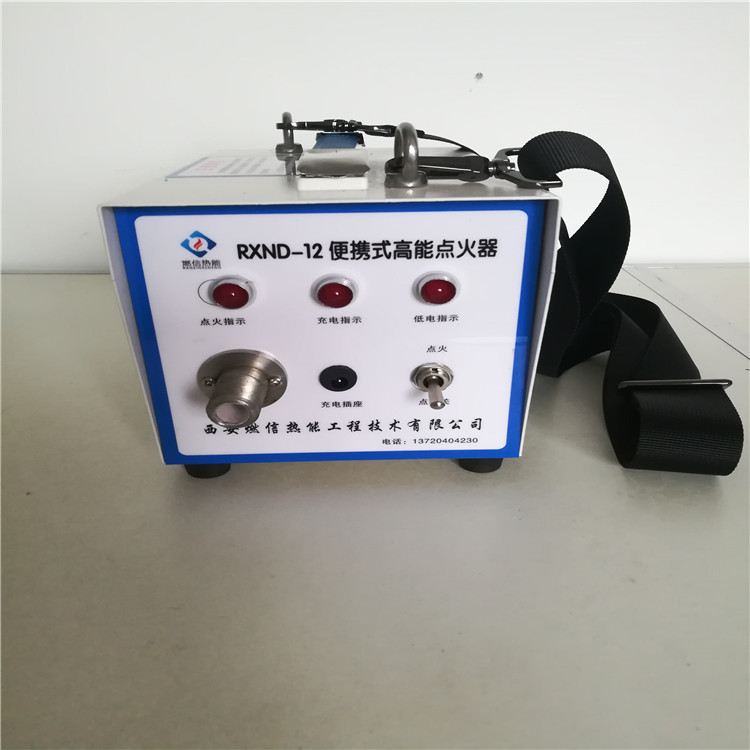

    III. Handheld boiler igniter​panel description:
      The panel has three indicators:
      1. Ignition indicator lamp: ignition real-time indication
      2. Charging indicator light: bright when connected to intelligent charger for charging
      3. Low battery indicator light: bright when internal battery voltage is too low during ignition
      There are also high-voltage output connectors, intelligent charger sockets, ignition knob switches
    IV. Use method of handheld boiler igniter:
      1. Correctly connect portable high-energy igniter, high-voltage cable and ignition gun, otherwise high-voltage leakage ignition may occur, causing personal and equipment damage.
      2. Put the ignition switch in the ignition position, the ignition device starts to work, and the ignition indicator lights up to show ignition.
      3. After ignition, put the ignition switch in the ignition off position. At this time, you can connect the intelligent charger through the charging socket for charging, and the charging indicator light is on; when the indicator light of the intelligent charger changes from red to green, the battery in the machine is sufficient.
