• Product Description
    Company Info.
    <
    >
    <
    >
    Basic Info.
    Processing customization:
    Yes
    Whether there is a patent:
    No
    Alias:
    boiler igniter
    Combustible substance:
    Gas, fuel oil, light oil
    Overall dimension:
    145×130×85mm
    Material:
    stainless steel
    Item number:
    1003
    Model:
    RXGD-03
    Product Description

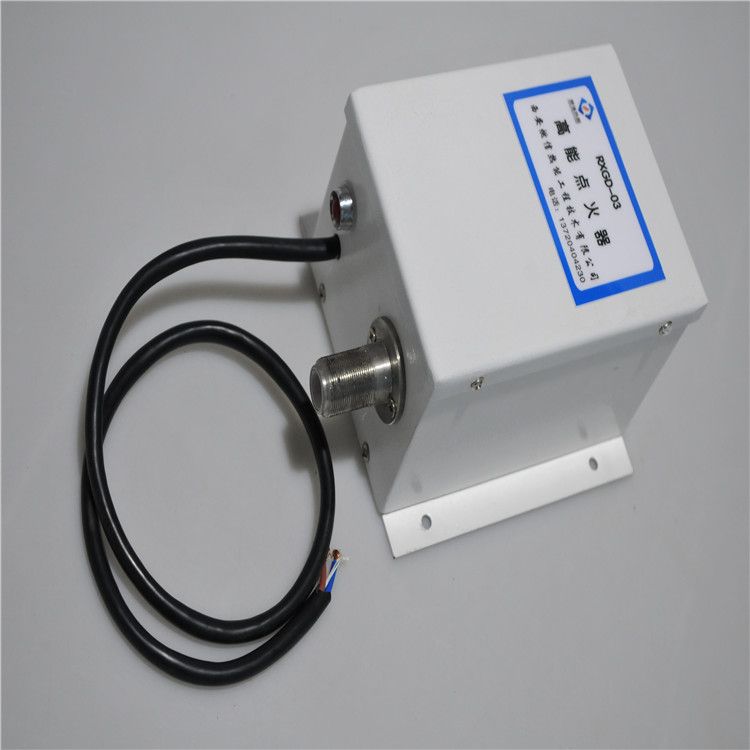

    RXGD-03 Natural Gas Ignition Device Burner Igniter

     RXGD-03 high-energy igniter, used for automatic ignition of industrial burners, especially for soot blowers. The product has small volume, large energy, high temperature resistance, carbon deposit resistance, coking resistance, self-purification ability, high ignition reliability, its performance is better than imported ignition transformer, ignition rod installation is convenient, no need to adjust the ignition electrode discharge distance.
    I.    Technical parameters of RXGD-03 natural gas ignition device burner igniter
     1    , power supply voltage: AC 220V    ± 10% 50/60Hz
     2  . Applicable fuel: gas
     3. Instantaneous temperature resistance of ignition end: 1300 ℃
        4    . Ignition frequency: 6-15 times/s
     5, spark energy: 3J
    II.    RXGD-03 natural gas ignition device burner igniter shell　　　　　　    　　　  　　　
     1    . Material: metal case
      2    . Volume: 145× 130× 85mm
      3. Installation size: 100 115mm rectangular diagonal installation, installation hole 5mm
    III.RXGD-03 natural gas ignition device burnerigniter rod and ignition cable　　　　 　　　
    1, ignition rod front material 2520 high temperature alloy;semicond high temperature material.
     2    ,    the conventional ignition rod diameterΦ 16, installation thread M18× 1.5, special circumstances ignition rod diameter, length, connection mode, can be customized according to user requirements.
     3    . Ignition cable is special ignition cable, and the length is supplied according to user requirements.
    Know Your Supplier
    Name（chinese）
    西安燃信热能工程技术有限公司
    Name（English）
    Xi'an Ranxin Thermal Energy Engineering Technology Co., Ltd.
    China credit code
    91610113MA6UYPKB66 Identity Verification
    Registered Capital
    2,000,000 CNY
    Operating term
    2018-06-25 ~ ****
    Product Category
    high-energy igniterflame detector
    Company Registered Address:
    Room 1506, Hengsheng Commercial and Residential Building, No. 8 Jiangong Road, Yanta District
    Address
    Xi'an, Shaanxi, China
    Nearby port
    Xiamen
    Xi'an Ranxin Thermal Energy Engineering Technology Co., Ltd. is located in Xi'an City. It is a high-tech joint-stock company specializing in the design, research and development, production, sales, installation and debugging of thermal ignition equipment, flame detection equipment and combustion automation control. The main products include: high-energy ignitors, flame detectors, explosion-proof high-energy ignitors, portable high-energy ignitors, ultraviolet flame detectors, ion flame detectors, remote remote control automatic ignition devices, flameout protection alarm devices, heating and ventilation equipment. At the same time, we undertake various industrial furnaces, boiler burner combustion devices, system complete projects, combustible gas monitoring alarm and flare emission projects and related combustion equipment technical services. The company provides customers with professional technical support and system solutions for free. Its products are widely used in boilers, kilns, machinery, petrochemicals, ceramics, metallurgy and other industries. Business purpose: Enterprise purpose: To be the most professional comprehensive service manufacturer of environmental protection, energy conservation, and intelligent fuel control equipment. Contact person: Ms. Ma Tel: 13720404230
