Product DescriptionCompany Info.<>
- Processing customization:
- Yes
- Whether there is a patent:
- No
- Alias:
- Explosion proof boiler ignition device
- Combustible substance:
- Heavy oil, coal powder, biomass particles
- Overall dimension:
- 300*300*140mm
- Material:
- cast aluminum
- Item number:
- 1020
- Model:
- RXFD-20
Gas diffusion explosion-proof high-energy igniter torch ignition device combustion heat RXFD-20Some areas in the industrial industry are explosion-proof areas. At this time, when selecting high-energy ignition devices, explosion-proof high-energy ignition devices should be selected. The specific explosion-proof grade should be determined according to the actual situation of the factory site. The explosion-proof high-energy ignition devices have BT4/BT6/CT4/CT6 explosion-proof grades, applicable to various explosion-proof areas.
- Gas diffusion explosion-proof high-energy igniter
2, adapt to fuel: gas, light oil, heavy oil
3. Instantaneous temperature resistance of ignition end: 1300℃
4. Ignition frequency 6~12 times/S
5, spark energy: 20J

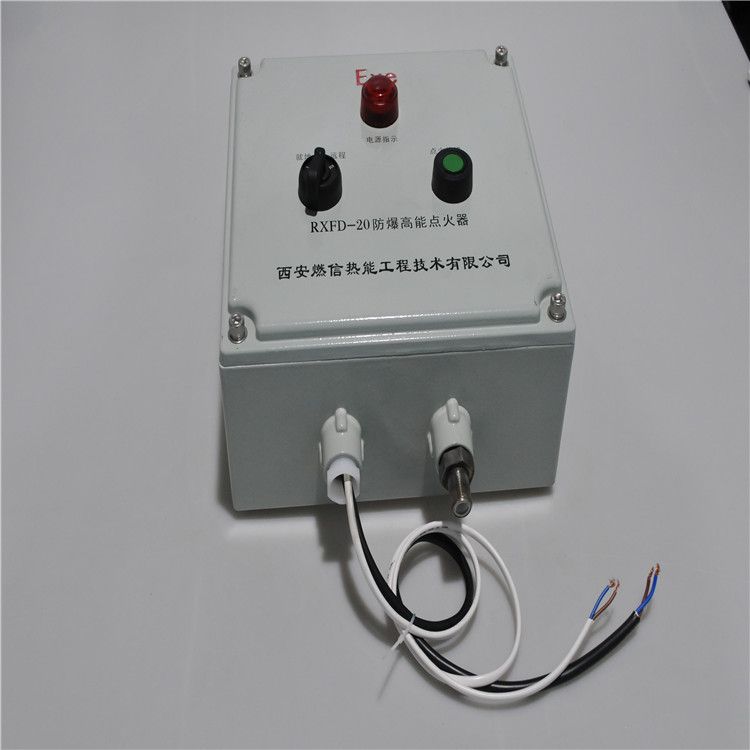

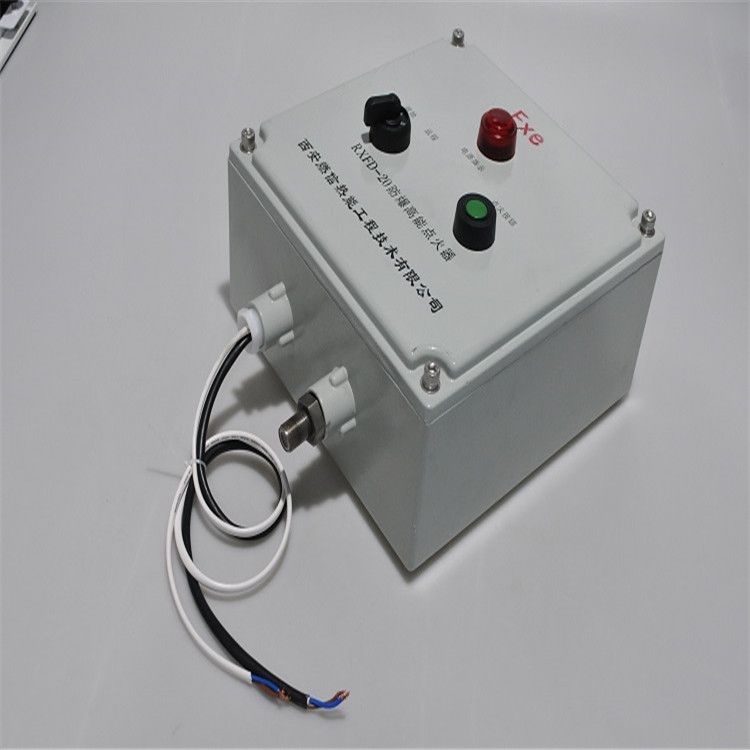

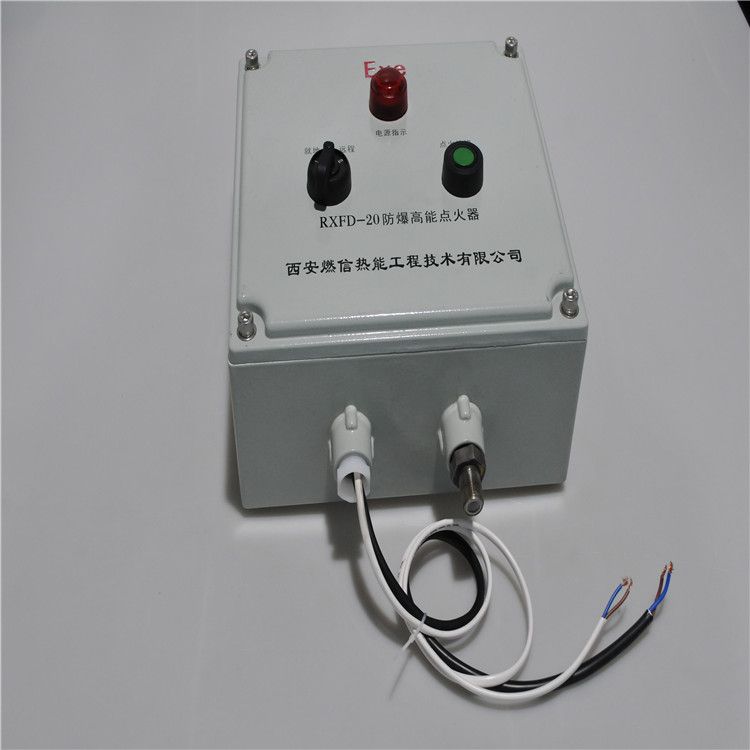

6. Explosion-proof grade: BT6- Gas diffusion explosion-proof high-energy igniterpanel and wiring diagram
Note : Connect the black wire to AC 220V input power supply as shown in the above figure, and connect the white wire to remote drive (passive switching value) signal. Turn on the power supply, the power indicator on the explosion box panel is on. When ignition is started locally, turn the local/remote knob to the local position, press the ignition button on the explosion box panel to start ignition, and release the ignition button to stop ignition. To remotely control, turn the local/remote knob on the explosion box panel to the remote position, input the remote drive (passive switch value) signal, the igniter starts ignition, and stops ignition when the remote drive is stopped.
Gas diffusion explosion-proof high-energy igniter ignition rod and ignition cable
1, ignition rod front material 2520 high temperature alloy.
2, the conventional ignition rod diameterΦ 16, installation thread M18× 1.5, special circumstances ignition rod diameter, length, connection mode, can be customized according to user requirements. The ignition cable length can also be customized according to customer needs.- Installation and wiring ofgas diffusion explosion-proof high-energy igniter
(2) If the use occasion is the emission torch, it is necessary to fix the ignition rod with a special ignition rod clamp, and the ignition end of the ignition rod is 100-200mm away from the emission port. The ignition rod is of a new structure, and the discharge distance does not need to be adjusted.
2. This series ignition device consists of explosion-proof box, special ignition cable and ignition rod. When installing, connect the ignition device box and ignition rod with special ignition cable, and the power supply is 220V.AC.
Custom Petroleum Semi-gas High Energy Igniter Explosion-proof High Energy Igniter RXFD-20 Use
1.Before ignition, ensure that furnace purging is completed without residual combustible gas. Prevent safety accidents such as deflagration when starting ignition.
2, ignition, should first open the ignition device, and then fuel injection (gas) ignition.
3, igniter used in fuel ignition, fuel should be atomized well, atomization quality is too poor to affect the ignition success rate. After ignition is complete, the ignition rod must be withdrawn from the flame combustion zone using a propeller or manually to ensure the service life of the ignition rod.
4, ignition When the fuel is ignited, turn off the igniter. In order to avoid long-term continuous ignition resulting in internal component burn out, the igniter has added protection module, a continuous ignition for 10 seconds, will automatically stop ignition output, re-press the local ignition button or re-turn on the remote drive to resume ignition.
Note: Explosion-proof grade of explosion-proof high-energy igniter can be customized according to site requirements, and specific requirements are detailed by calling.
